Diganostics
An innovative, digitalized, precise, and robust diagnostic approach enabling maintenance operations to be planned neither too late nor too early.
Health Index
A health status assessment of the asset that, using various parameters, determines the evolution of its condition over time and estimates the impact of a failure or maintenance.
Remaining Useful Life
Determining the asset's remaining lifespan using key aging parameters enables precise planning of major maintenance or asset replacement.​

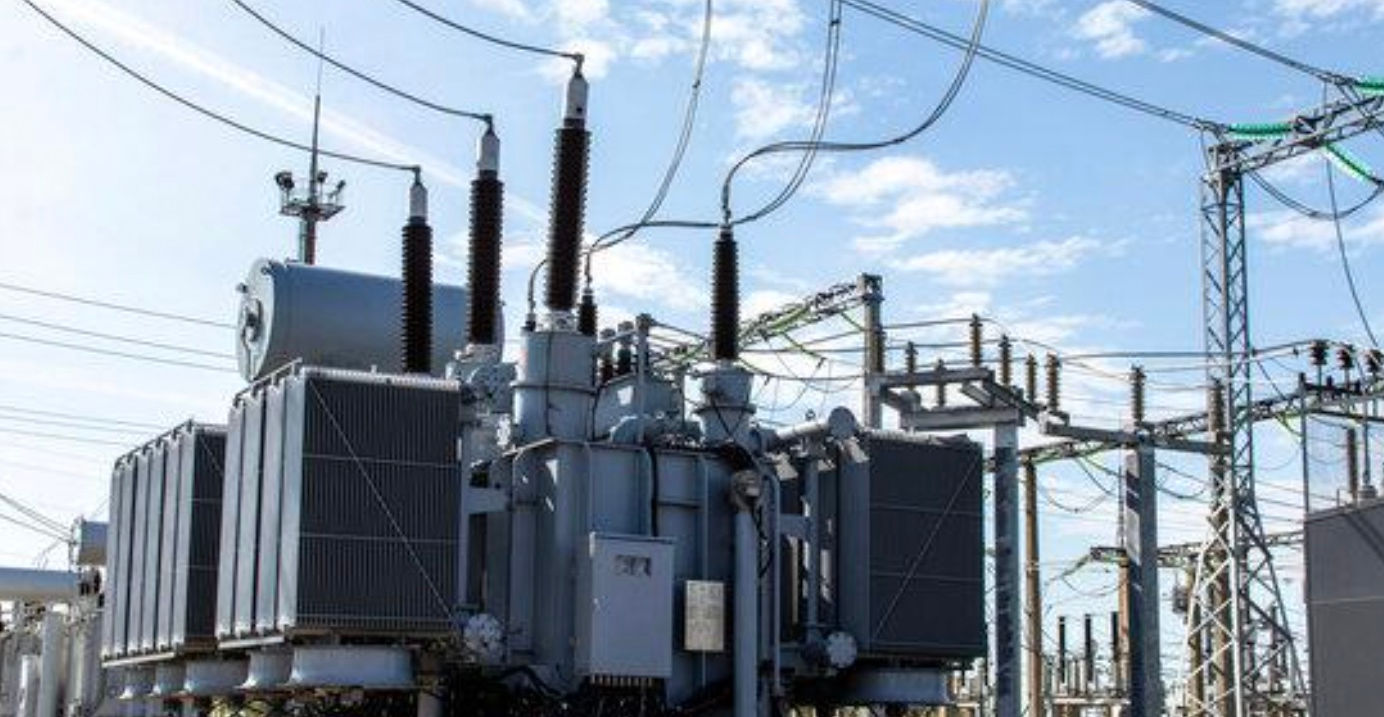

Use Case: Power Transformer
Diagnostics

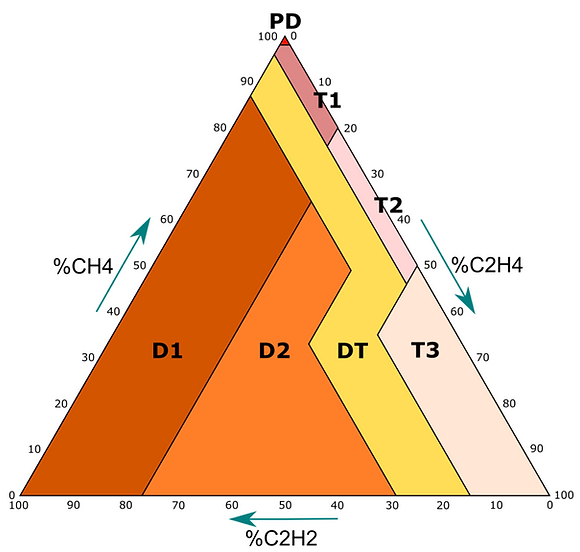

Diagnosis of a power transformer based on the Oil Quality Factor (OQF), dissolved gas analysis (DGA) techniques such as the Duval triangle and novel DGA power representation, and the estimation of a thermal indicator, such as the Top Oil Temperature (TOT), derived from power consumption.

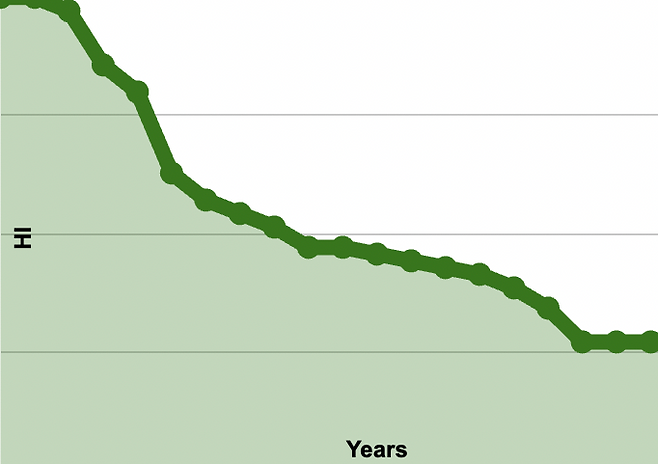

Health Index
The Health Index is determined based on several key factors, including the Degree of Polymerization (DP) status, the DGA, the historical maintenance records, the quality and status of the oil, the thermal performance of the system, and the age of the transformer.

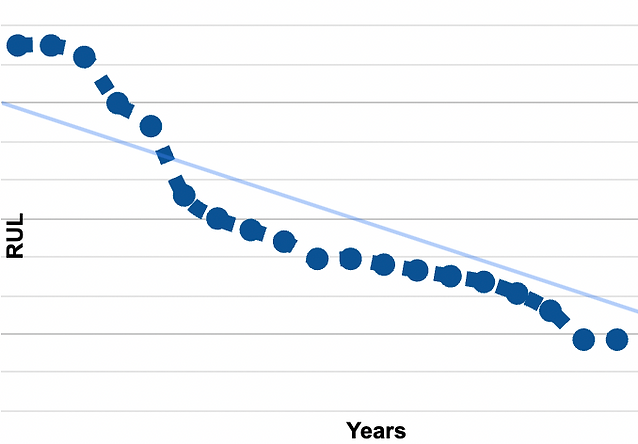

Remaining Useful Life
The Remaining Useful Lifetime (RUL) of the transformer is evaluated using a classical method that involves estimating the DP through furan analysis and a novel approach using more commonly available parameters, allowing for a more comprehensive analysis by leveraging a broader range of historical data.

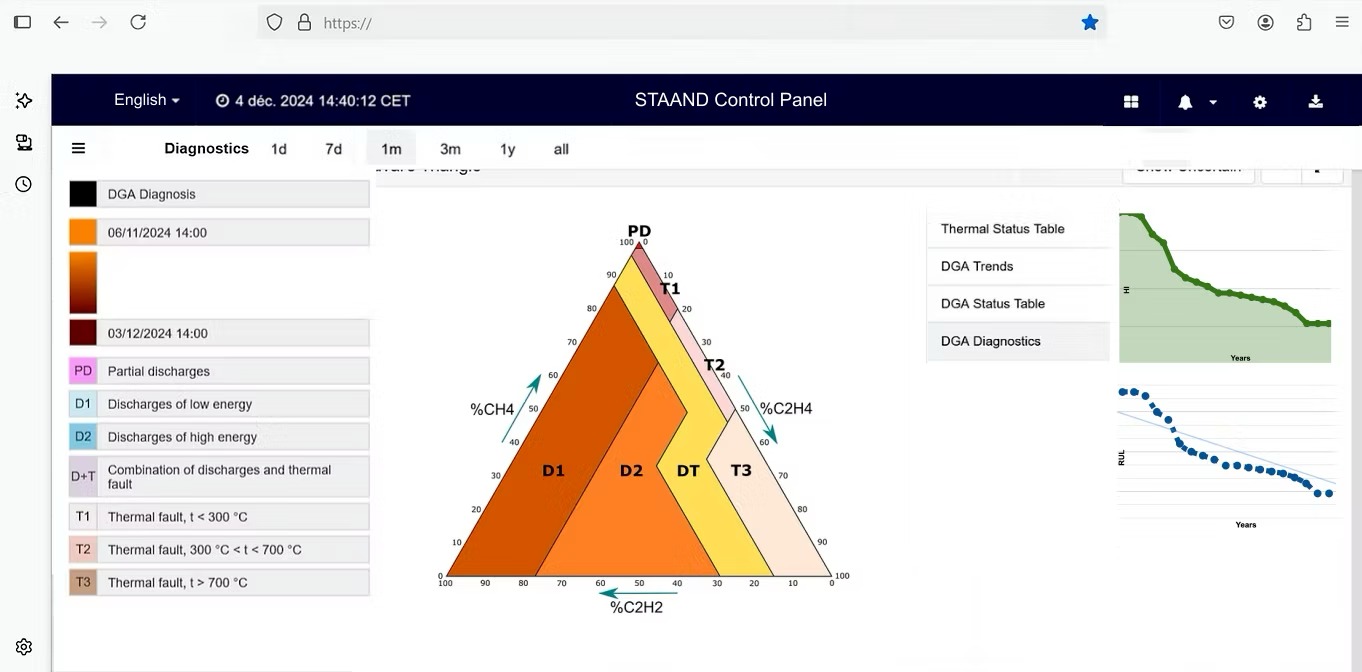

User-friendly Software Solution
Algerian Business Sectors
Oil & Gas
Railway
Aeronotics
Power
Machinery
Request demo
To schedule a product demo, please reach out by email.
ALSTRATO Incubator, Rue Tounsi Mouhamed Port N4, Heraoua, Algiers, Algeria
